Opton fusion splicer Signal Fire AI-9 (including toolbox & tools)

Διαθέσιμα: 1
Splicer with built-in power meter and visual fault locator!
Τιμή πώλησης 985,80 €
Τιμή πώλησης χωρίς φόρο 795,00 €
Ποσό Φ.Π.Α. 190,80 €
Opton-SignalFire-AI-9-1
Opton-SignalFire-AI-9-2
Opton-SignalFire-AI-9-3
Opton-SignalFire-AI-9-4
Opton-SignalFire-AI-9-8
Opton-SignalFire-AI-9-5
Opton-SignalFire-AI-9-6
Opton-SignalFire-AI-9-7
Περιγραφή

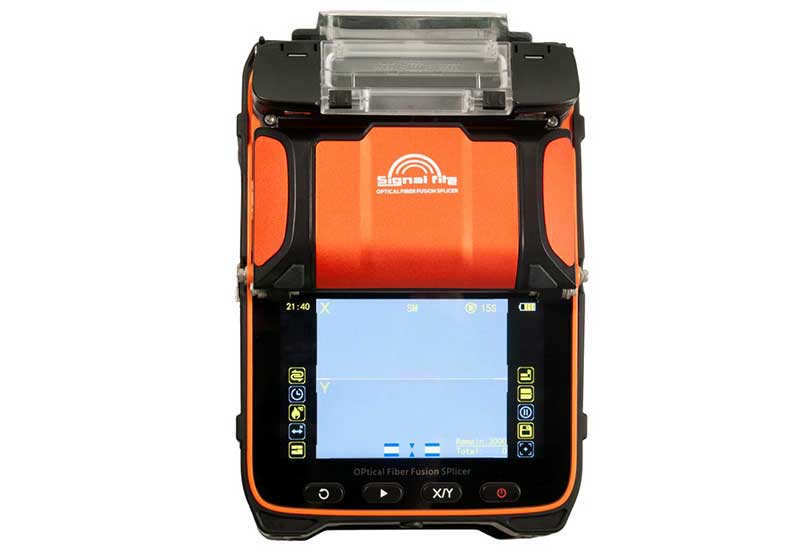

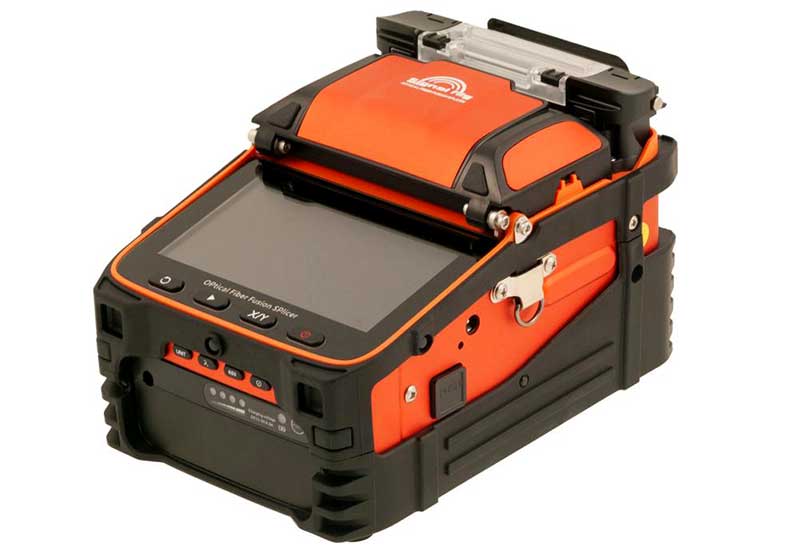

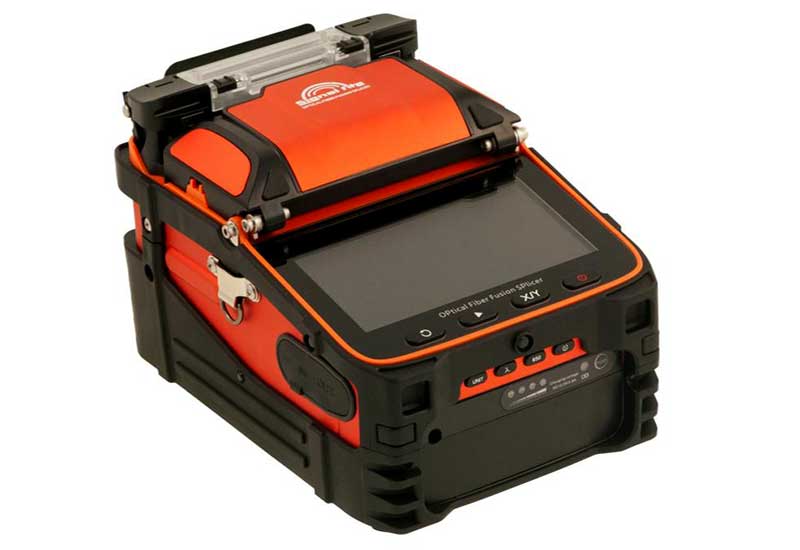

Opton Signal Fire AI-9 fiber optic splicer is a new version of the popular AI-7. The device is distinguished by centering to the core and a 300-fold magnification of the image. Compared to the older model, the speed of the spicing cycle has been improved - the fusion splice duration time is 5 s and the soaking time 15 s. The new Signal Fire performs equally strong and durable fusion splices as its predecessor, it will prove itself both as the main fusion splicer and a tool for installation in subscribers' premises.




The new version is equipped with a built-in power meter and a visual fault locator. The meter can operate at wavelengths of 850/1300/1310/1490/1550/1625 nm, so it will work in most applications. To check the quality of the cable in shorter connections, you can use the visual fault locator.

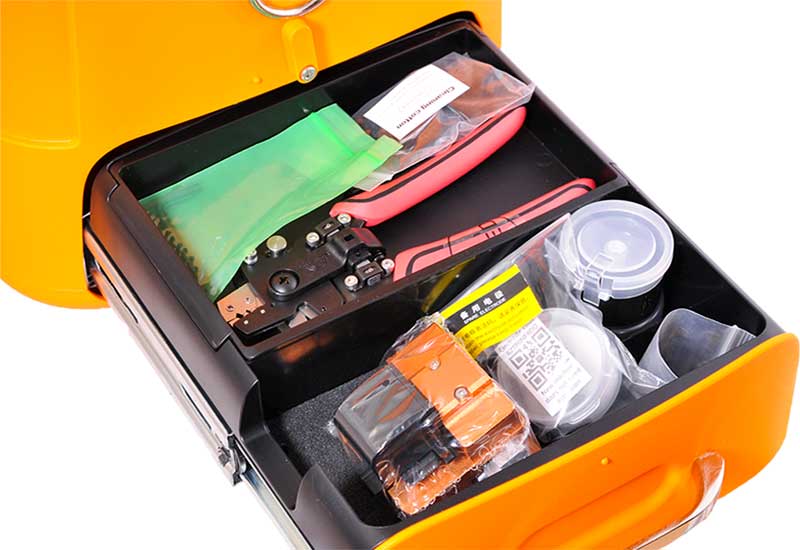

The device is closed in a handy box with numerous additional accessories. The set includes: a diamond knife for cutting fibers, electrodes, flat cable stripper, three-eye stripper (125/250/900 µm), power supply, alcohol dispenser and a brush (for cleaning). The fusion splicer has a universal holder, it can be used for SM, MM, DS and NZDS fibers. The software functions are available from the application for mobile devices with Android / iOS. The welder has an auto fusion splicing and annealing program, but more advanced settings must be configured on the mobile device.

The most important features:

  • possibility of welding SM, MM, DS and NZDS fibers;
  • centering to the core;
  • welding time - 5 s;
  • soaking time - 15 s;
  • magnification up to 300 times;
  • built-in optical power meter;
  • built-in visual fault locator;

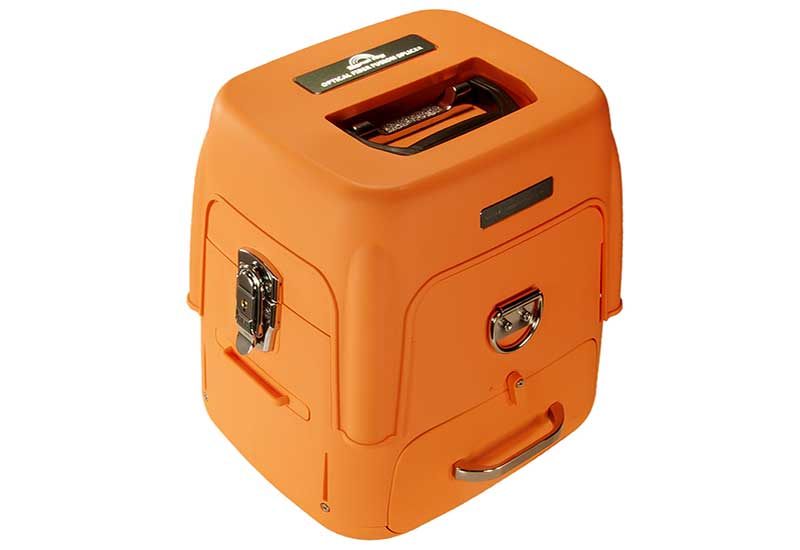

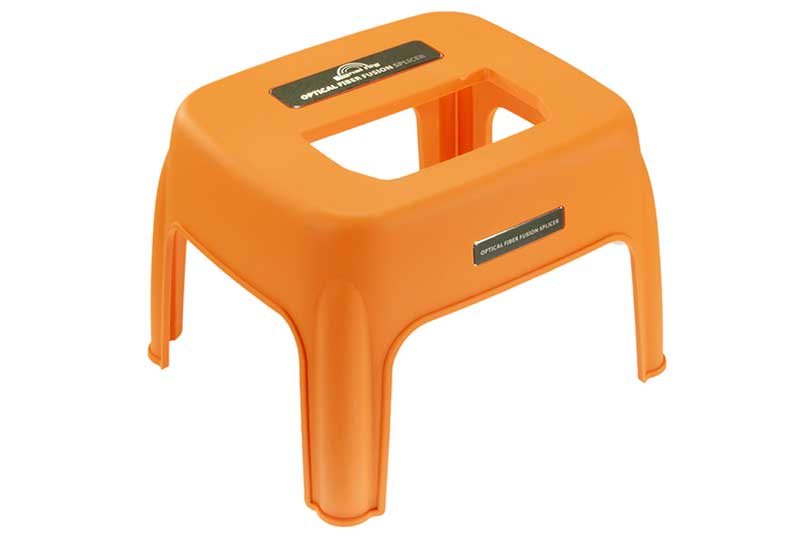

  • a handy case with a drawer for tools and a stool;
  • numerous accessories.
Τεχνικα Χαρακτηριστικα

Specification

SignalFire AI-9

Compatible fibers

 SM (G.652 i G.657)

 MM (G.651)

 DS (G.657)

 NZDS (G.655)

Fusion splicing loss

 SM: 0,025 dB

 MM: 0,01 dB

 DS / NZDS: 0,04 dB

Focus mode  Automatic
Centering  For core, cloak or manual
Fusion splicing duration time  about 5 s
Heating time  about 15 s
Splicing controll

 Kontrolowanie w czasie rzeczywistym

 Kalibracja spawarka

Return loss  > 60 dB
Fiber diameter

 with varnish: 80-150μm

 with cable insulation: 100-1000μm

Fiber length after cut

 fiber without insulation 250µm: 8 - 16 mm

 with insulation 250-1000μm: 16 mm

Splice protectors

 40 mm

 60 mm

VFL - Visual Fault Locator

 Power: 15 mW

Power meter

 Wavelength:

  • 850 nm
  • 1300 nm
  • 1310 nm
  • 1490 nm
  • 1550 nm
  • 1625 nm

 Measure range:

  • -70 ~ 6 dB
Stress test  2 N

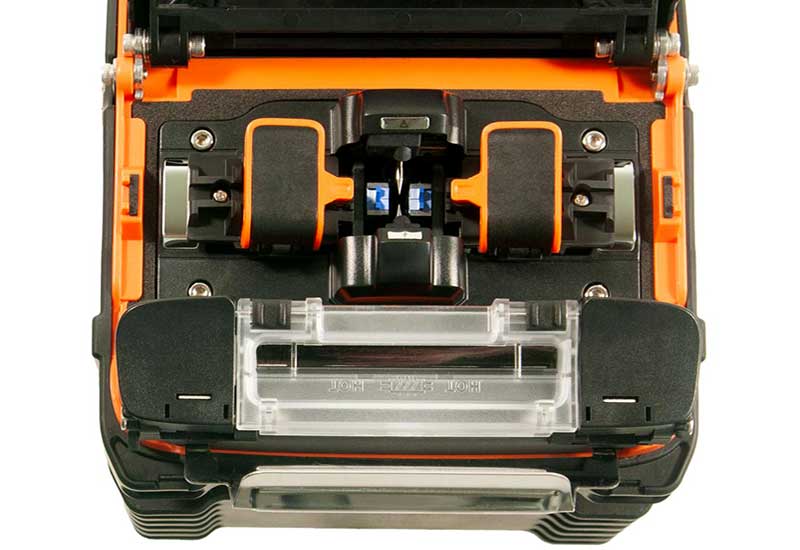

Holders  Universal holders for various types of fibers
Magnification  to 300 times
Display  5,1" color TFT
Software update  Poprzez aplikację na urządzenia mobilne
Fusion splicing modes  Normal or precison
Memorization of splices  Sync with phone or cloud

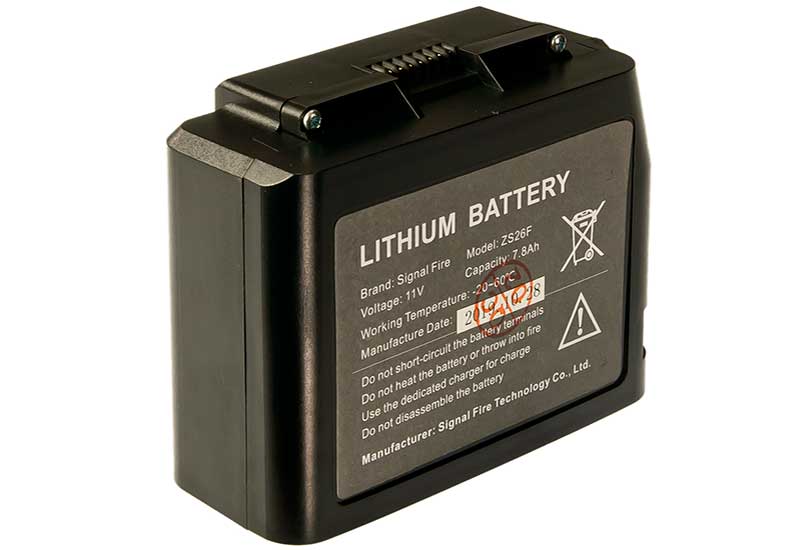

Built in battery

 Capacity 7800 mA

 Charging time: about 3,5 hours

 It allows for 240 cycles splicing / heating

Power  13,5 V DC / 4,8 A
Flashlight  External
Operating temperature  From -15 to 50 °C
Permissible air humidity  < 95% RH non-condensing
